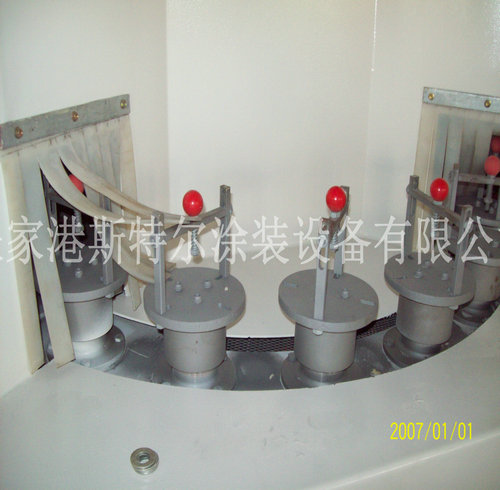

本噴砂機適用于10-490mm直徑的(de)各樣類件的(de)內和外(wai)外(wai)壁手工(gong)制(zhi)作操控噴砂上(shang)班,徹(che)底清除外(wai)外(wai)壁的(de)油垢、外(wai)壁除銹防銹、外(wai)壁升級、增加(jia)很糙度、弄(nong)掉外(wai)壁剪切力等(deng)。(舉例(li):電(dian)飯(fan)煲、杯具、不粘鍋、安卓(zhuo)手機底殼、臺式機底殼、槳葉(xie)、木工(gong)鋸片等(deng)情況)可(ke)按企業(ye)客(ke)戶耍求訂制(zhi)單辦公(gong)桌或(huo)雙辦公(gong)桌。
The sandblasting machines apply to 10-490 mm diameter of of all kinds of the internal and external surfaces of the manual operation sandblast homework, remove the dirt, surface derusting appearance, surface strengthening and improving roughness, removing surface stress, etc. (for example: electric meal bao, cup with, titanium, cell phone casing, computer shell, impeller, saw blades, etc) make single or double position according to customers' special requirements.
◆其主要(yao)枝術規格 Main technical parameters
|
儀器規格 Model |
STR-A1500型12槍圓輪轉回式 |
STR-A1600型八槍園盤換向式 |
STR-A1600型十四槍圓輪倒轉式 |
|
空機尺寸大小 Complete machine size(mm) |
1500×2160×3000 |
1600×1800×2500 |
2200×2400×3000 |
|
工作上艙圖片尺寸 Working class size(mm) |
Φ1400 |
Φ1500 |
Φ2000 |
|
除塵設備箱外形尺寸 Dedust box sizes(mm) |
1000×1200×2500 |
1000×1200×2500 |
1400×1400×2500 |
|
小轉盤數 The small turntable for |
16個 |
8個 |
8個 |
|
噴槍數 Gun number |
12把 |
8把 |
14把 |
|
電壓 Power |
380V相電壓電 |
380V單相電 |
380V三相四線電 |
|
照明 Floodlight |
2盞防燃燈 |
2盞防火燈 |
2盞防火燈 |
|
刷卡機稱重 Machine weight |
800kg |
750kg |
800kg |
