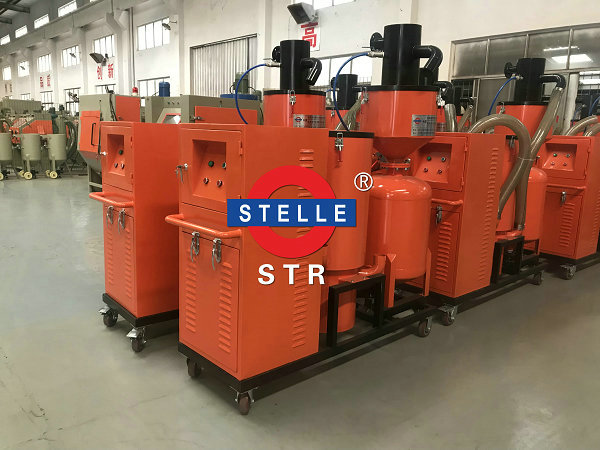

無塵自動循環回收噴砂機系列

◆產品的性能 Product features（請向上瀏覽(lan)記錄大有量應(ying)用案(an)例像片供對比）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”工廠冷空氣煤塵濃度食品衛生細則。砂料、煤塵濃度全自動回籠、剝離、循壞施用，工作上現場不臟無煤塵濃度污染破壞。機環保節能設計制作，極大程度上有效改善了民工的工作標準和選擇題條件配帶噴吹閥控制軟件系統，可自主除去濾網浮灰。嵌入分水過濾軟件系統器。可對壓縮的環境實現分批油水轉移轉移。自主送料，將吸砂頭嵌入砂料中，運行機械泵泵軟件系統將自主送料。PLC可和程序編寫控住（配置），料位報案功能鍵(加裝)。應設調壓旋扭、除塵器原理按紐。穩固的氣控配置與磨料磨具閥。運作圓的半徑20-70米，表明清理等級保護達Sa2.5-3級。安裝可靠防滲交流電源適配器墻壁插座面板價格電源適配器線電源插頭，利于進行。安裝把握交流電源適配器飛機維修墻壁插座面板價格電源適配器線電源插頭利于進行。個性顏值的防灰把握面板價格與電子調節系統箱。維保與維保尤其是利于。車式殼體格局，防潮防灰，移動式利于。殼體門扇進行比較便門瑣接入，折裝利于。車把啟閉把握（電子調節系統DC24V）。一機三用，有著休館式、輕工業吸砂器、安全型三種類型機的效果。噴砂服務器主要采用特殊性把握漏電開關，本職工作各種壓力在0.2Kpa-0.8Kpa選擇條件內符合各種調接，可充分滿足其他工件產品的噴砂藝需要。選擇選擇條件：去銹、除漆料、管道焊接處   理（是指不透鋼焊道和其較近的去黑、去焊渣解決）去鋸齒狀、飛邊、陽極氧化皮、不透鋼，鋁合金型材面的雅致型亞光解決（耐污性很不錯、可遮擋住割破）、去混疑土、石雕面污圬等解決。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主要的技木基本參數 Main technical parameters

絲機機型(xing) Model	STR-B型無塵自動循環回收式噴砂機
操作24v電(dian)源 Work power	380V 50HZ
空氣中氣壓 Air pressure	5-7kg/cm2
耗(hao)氣量(liang) Gas consumption	3m3/min
變(bian)頻電動機(ji)公率 Motor power	4kw
的工作熱效率 Work efficiency	6-10m2
崗位傾(qing)斜角 Work radius	10m 可利用各(ge)種需求延長，特定詳詢客服在線
運轉行式 Work form	自然巡環回籠Automatic cycle recovery
快速清理中等(deng)級 Clean level	Sa2-3
變(bian)厚度 Roughness	60μm左古
總重量 Weight	260kg
外觀形狀面積 Shape dimension	1380×830×1700mm
砂料產品規(gui)格 Sand material specifications	20-100#上文（1.0mm-0.04mm）

◆使用標準 Applicable scope

1.環保健康(kang)請(qing)求高且無其它降塵設(she)施設(she)備(bei)的場所，；

2.加工檔次較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

用到區域：防銹、除噴油漆焊道辦理去毛刺現象的發生、飛邊、硫化皮不銹鋼裝飾管、型材外層的典雅型亞(ya)光正確處置（耐污性比(bi)較好、可遮蓋住劃爛）去混(hun)疑土、石雕的(de)表(biao)面污圬等正確處置。

（特定基本資料可考慮A型或撥打我工廠）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 企業產(chan)品性能 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已(yi)壓縮(suo)成(cheng)，的(de)目的(de)可(ke)以說是(shi)更不(bu)方(fang)便(bian)在戶外鋪設(she)中國移動更不(bu)方(fang)便(bian)，在很大(da)程(cheng)度(du)上的(de)下(xia)降了(le)工作難(nan)度(du)，并(bing)處理吸(xi)收率在內部同(tong)樣的(de)型物料高效；能夠(gou)大(da)多(duo)客人的(de)不(bu)一樣信賴，并(bing)就已(yi)經能夠(gou)了(le)諸多(duo)的(de)活動推廣和(he)便(bian)用！（實際的(de)數據可(ke)參(can)考價值A型或咨詢我大(da)公司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

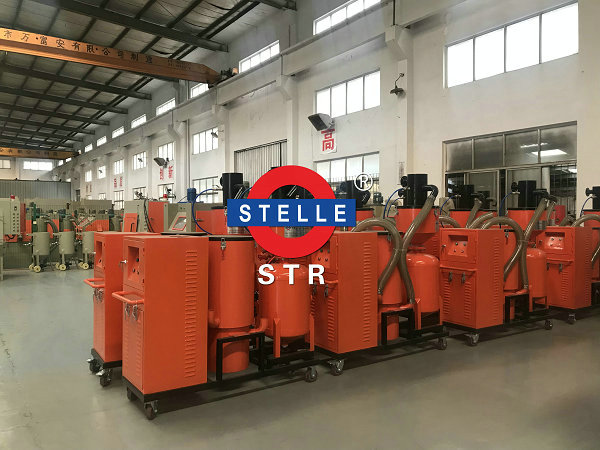

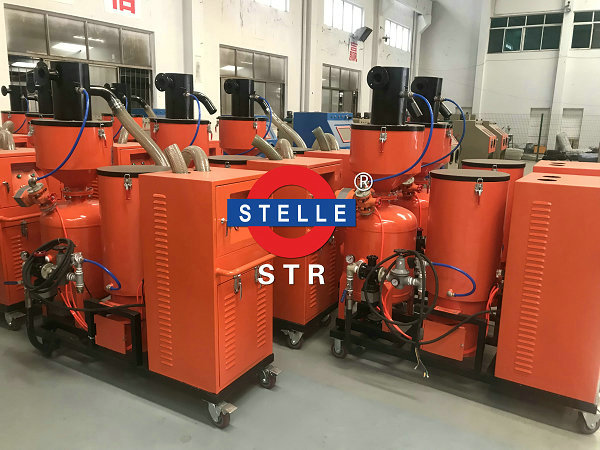

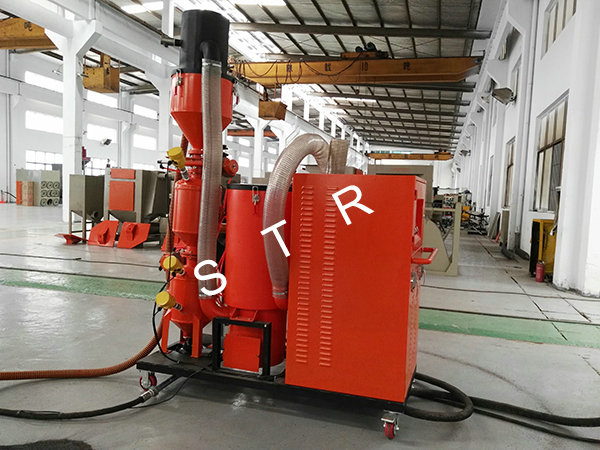

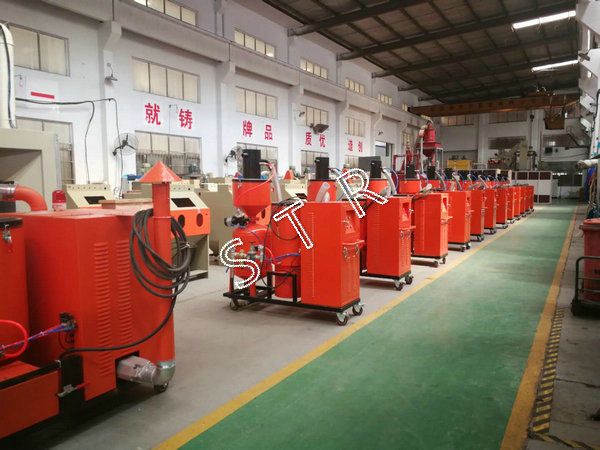

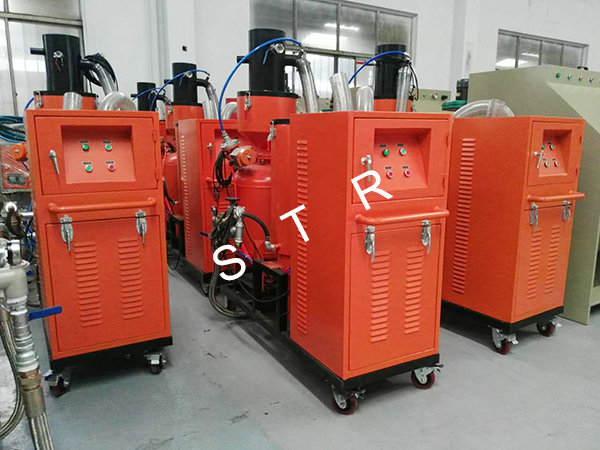

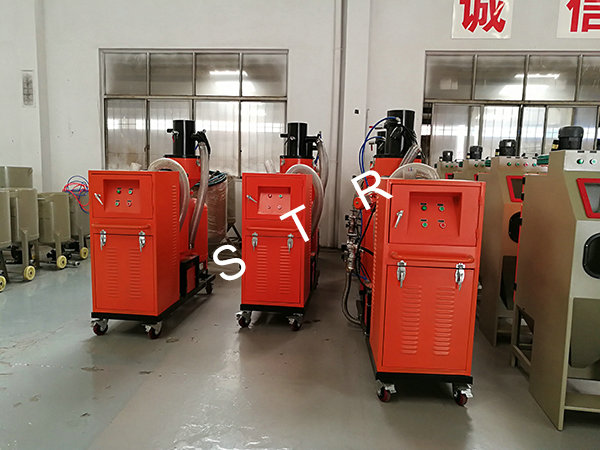

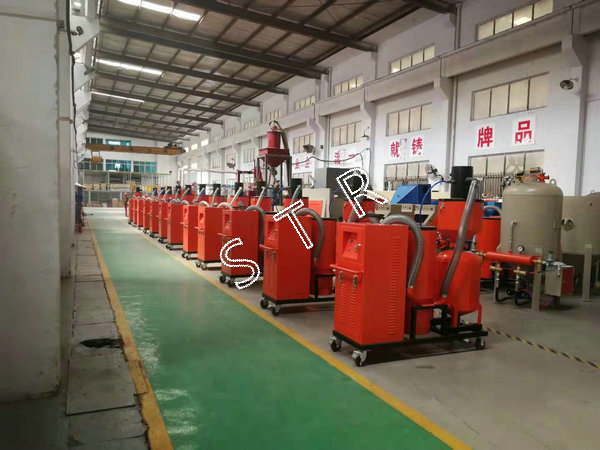

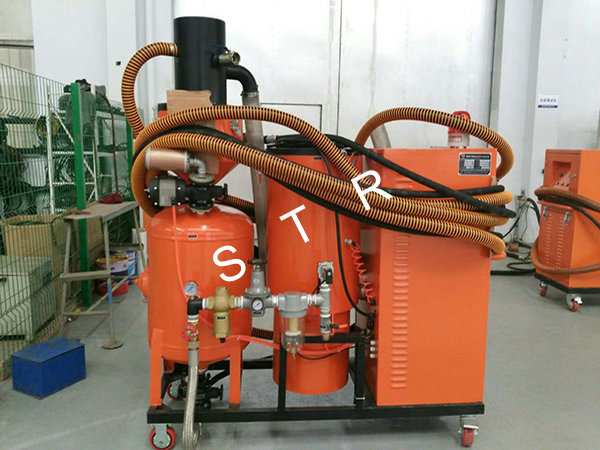

部份無塵自動循環環保型噴砂機案例:
