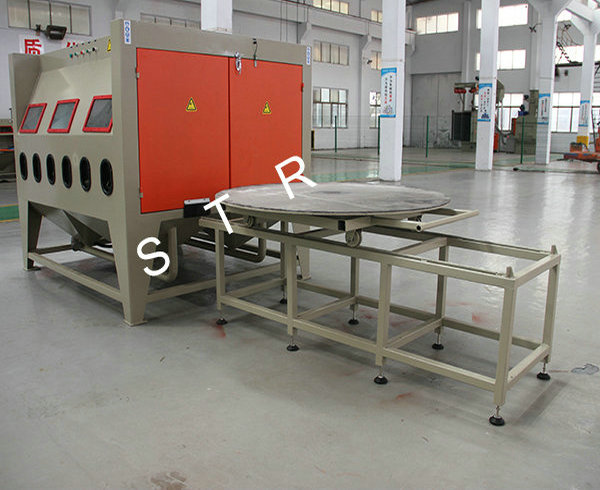

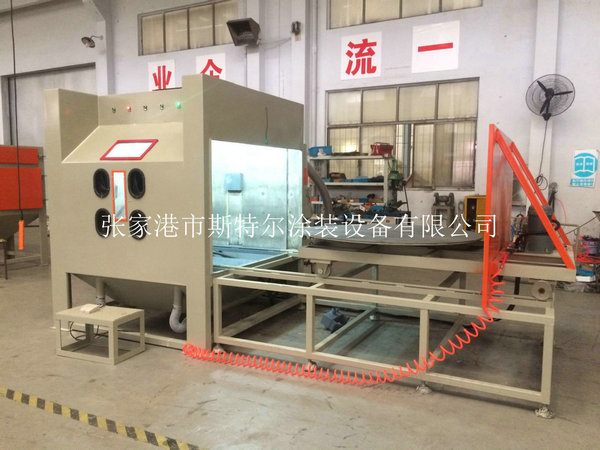

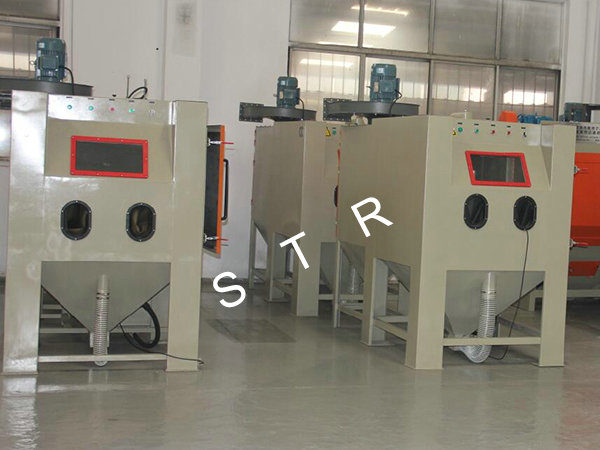

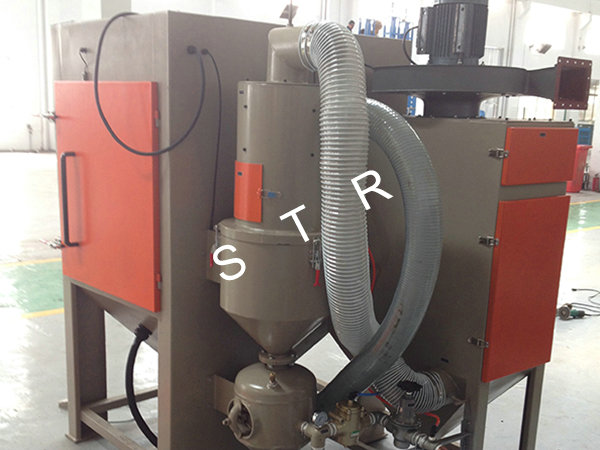

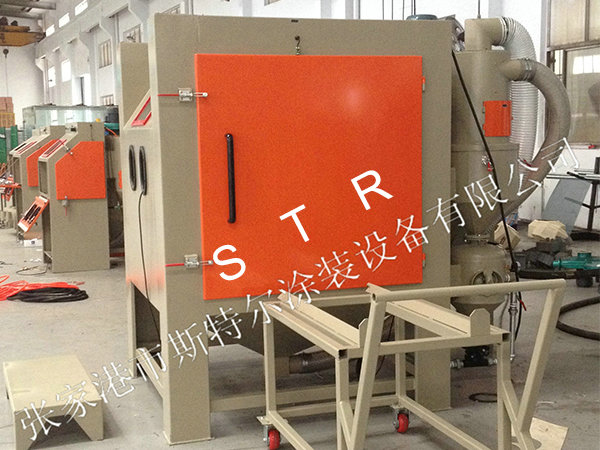

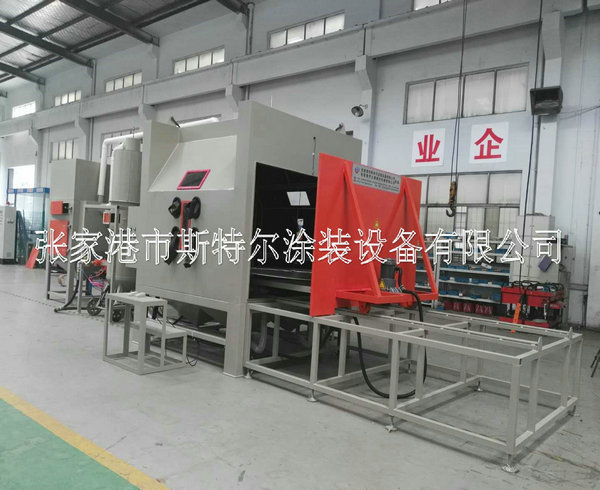

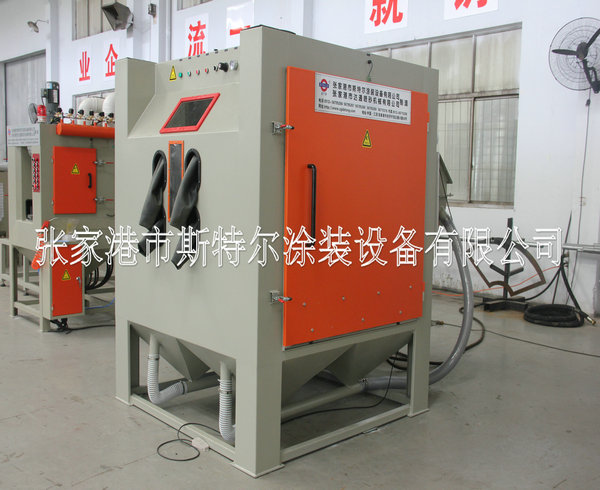

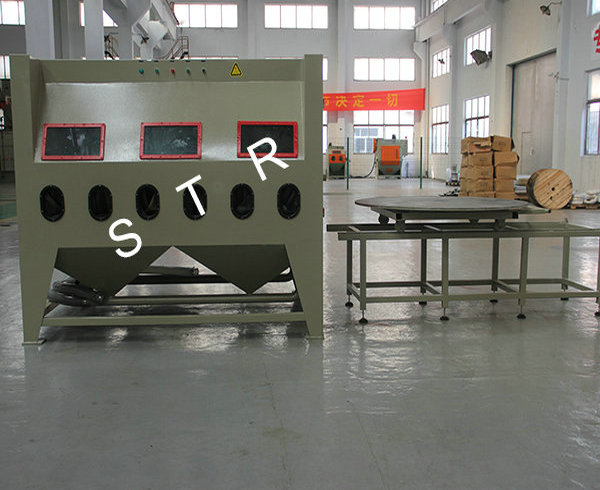

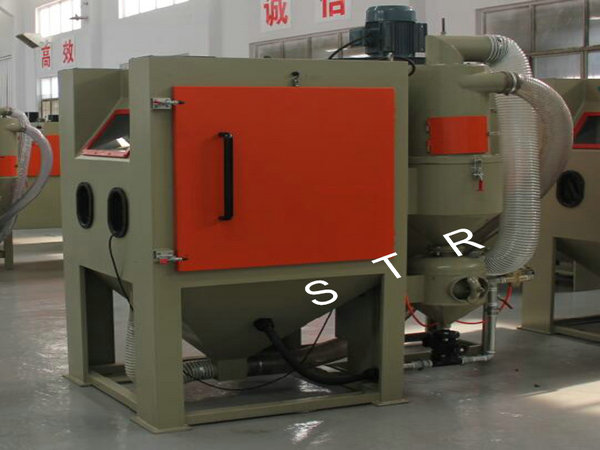

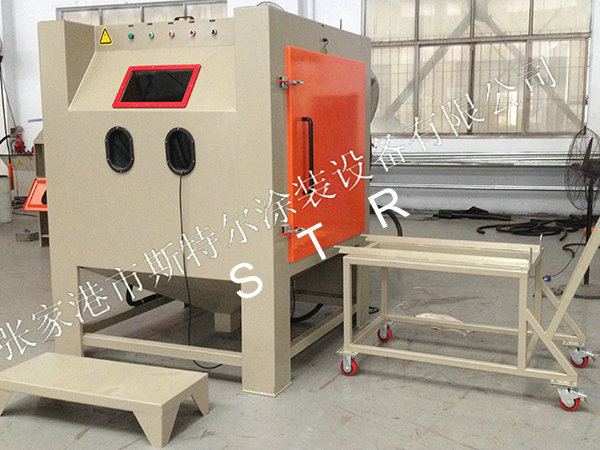

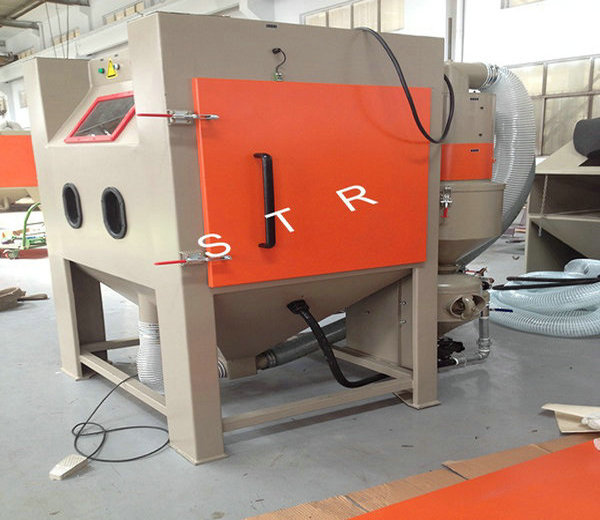

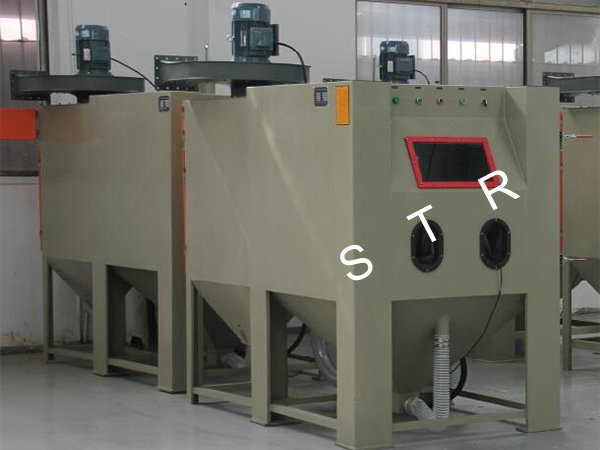

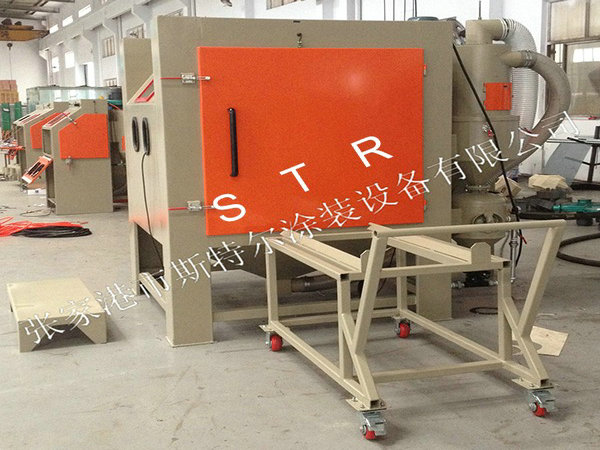

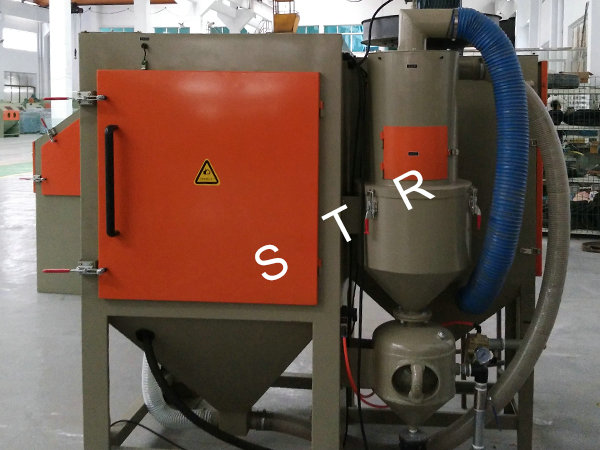

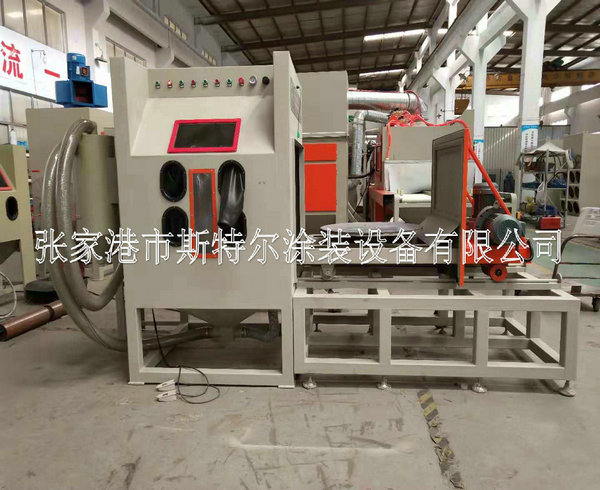

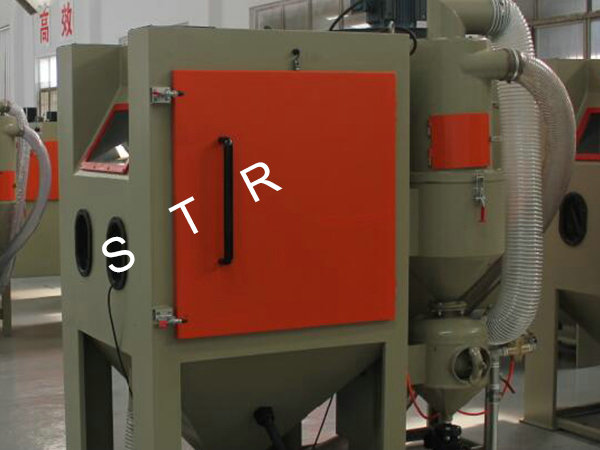

◆產品的亮點 Product features(請向上查看挺大(da)量成功(gong)案例相冊圖片供分類)
噴砂機主要用于電鍍、噴漆、噴涂等所有被覆蓋加工前噴砂處理;舊樣翻新清洗;金屬制品及塑膠、水晶、玻璃等表面痕跡消除,啞光霧面處理,使產品表面提升檔次;機加工零件微小毛刺去除;增加金屬件表面硬度,消除應力如彈簧、機加工刀具等;金屬制品及非金屬制品表面刻蝕圖案、文字及防滑處理,如大理石、印章、手柄防滑等。本機應用范圍:適用于大量中小型一般工件及高硬度工件的快速噴砂。如發動機配件、閥門、熱處理工件等。該機型設計新穎,結構科學合理,操作方便,加工性能優越;噴砂速度快,撞擊點深。
Features: Sandblasting machine is mainly used in electroplating, paint, coating area to-be-covered before piating; Old way of refurbished cleaning; Metal products and plastic, crystal, glass surface trace eliminate scattered, dumb, surface process to enhance the grade of the product's surface; Machining parts tiny burrs purify; Increase the metal surface hardness, eliminate stress such as spring, mechanical cutters, etc.; Metal and non-metai products surface etching pattern, writing and prevent slippery processing, such as marble, seals, and handle prevent slippery, etc. The machine is applied the range: applicable to small and medium-sized general of workpiece and high hardness workpieces quickly sandblasting. Such as engine fittings, valves, heat treatment workpiece, etc. This machine has novel, scientific design and reasonable structure, convenient operation, processing superior performance; Gush arenaceous speed, the impact point at deep.
◆適用性范圍圖 Applicable scope
自動化五(wu)金(jin)電器類,ABSPVC,亞(ya)克力面板,塑膠模(mo)具(ju)。大(da)型鋁件、形式件、硅膠粘合劑等(deng)鋁件或加工(gong)藝術(shu)品噴(pen)砂。
Applicable scope: electronic hardware class, ABS plastic, acrylic, resin, workpiece or handicraft sandblasting
◆首要方法參數 Main technical parameters供(gong)參照實際的與國際業務溝通
|
機械機型 Model |
STR-9070 |
STR-9080 |
STR-1010 |
STR-1212 |
|
工作的(de)艙的(de)尺寸 Internal size(mm) |
900×700×790 |
900×800×700 |
1000×1000×670 |
1180×1180×980 |
|
一整臺機器(qi)的寬度 Complete machine size(mm) |
900×700×1780 |
950×850×1720 |
1000×1000×2100 |
1200×1200×2580 |
|
收塵箱寸尺(chi) Dedust box sizes(mm) |
600×600×1680 |
600×600×1680 |
600×600×1680 |
800×800×1780 |
|
外接電源 Power |
220V 50Hz |
220V 50Hz |
220V 50Hz |
220V 50Hz |
|
機氣(qi)光照燈 Machine floodlight |
220V 20W 環保LED燈 |
220V 20W 發展(zhan)節能環保燈 |
220V 20W 能源(yuan)管(guan)理燈 |
220V 20W 低能耗燈 |
|
隔離器主軸電(dian)機 Separator motor |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55 |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55-3KW |
|
分離出來器(qi)新風量 Separator air volume |
8.5m3/min |
8.5m3/min |
8.5m3/min |
8.5m3/min |
|
文件(jian)壓縮氧氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
產品(pin)質量 Weight |
380kg |
380kg |
400kg |
380kg |
